HIGH QUALITY GUITAR SPARES, PARTS & PICKUPS AT THE BEST PRICES
GUITAR PARTS UK - PICKUPS, PARTS & ACCESSORIES
That scratchy old pot may be destroying your tone! Worn carbon tracks don't improve even after a good clean. The only option is replacement and these, full-size, potentiometers bring things back to life nicely!
PT0001: POTENTIOMETER (6 mm Collar )
TIP: It's amazing how many times we read "helpful" tips advising people to use Standard WD40 as a cleaner for guitar pots/switches. This is not a good idea. Standard WD40 is a wax based insulator and will add to the resistance between contacts & the wiper/track interface in pots. Use a good quality contact cleaner.
Excellent quality pots with a 6mm collars (the length of the threaded part of the shaft) for use with guitars where the pot is fitted through a scratchplate or Tele style control panel.
CRTC01: CAP'/RES' NETWORK FOR TREBLE COMPENSATION
If you're one of the many guitarists frustrated by the loss of treble when your volume control is reduced, the combination of a resistor and capacitor wired in parallel (known as "treble compensation" or "treble bleed" circuit) can really brighten things up. (see diagram)
PT0002: POTENTIOMETER (10 mm Collar )
Pots with a 10mm collars (the length of the threaded part of the shaft) for use with guitars where the pot is fitted through the wooden top or on a scratchplate.

Supplied with 2 nuts so can be height adjusted when used on a scratchplate.

NOW ALSO AVAILABLE AS 1 MEG OHM ! (1000K Ohm)
guitar_parts_uk0520136.gif guitar_parts_uk0520135.gif
Click to Expand
Click to Expand
A superb alternative to CTS, these highest quality Alpha pots have 18mm long, 9mm diameter, brass collars and brilliant firm action. They are extremely relaible and outlast many more expensive types!

18mm collars (the length of the threaded part of the shaft) for use with guitars with thicker carve tops.
TIP 1: LOG pots should always be used for Volume controls. For Tone controls either LOG or LINEAR pots can be used to your preference. If undecided, we recommend using LOG pots.
TIP 2: 500K Ohm pots have a slightly "brighter" sound than 250K Ohm pots as they place less load on the pickup. Therefore, 500K pots are more commonly used with humbuckers. 250K pots are often used with single coils as they can temper some of the shrill brightness. However, both values are interchangeable and can used according to taste. 1 Mega Ohm pots are the brightest of all 3 values.
TIP 1: LOG pots should always be used for Volume controls. For Tone controls either LOG or LINEAR pots can be used to your preference. If undecided, we recommend using LOG pots.
PT0004: "MINI" POTENTIOMETER
Pots with a smaller diameter bodies (16mm) for use with guitars with smaller control cavities.

Now also available in 25K Ohm values for use with active pickups.
TIP 1: LOG pots should always be used for Volume controls. For Tone controls either LOG or LINEAR pots can be used to your preference. If undecided, we recommend using LOG pots.
guitar_parts_uk0520132.gif guitar_parts_uk0520131.gif guitar_parts_uk026090.gif guitar_parts_uk0520130.gif pot_shaft_dimensions_6mm_01_100.gif
TIP 1: LOG pots should always be used for Volume controls. For Tone controls either LOG or LINEAR pots can be used to your preference. If undecided, we recommend using LOG pots.
TIP 2: 500K Ohm pots have a slightly "brighter" sound than 250K Ohm pots as they place less load on the pickup. Therefore, 500K pots are more commonly used with humbuckers. 250K pots are often used with single coils as they can temper some of the shrill brightness. However, both values are interchangeable and can used according to taste.
PT0005: DUAL-GANG POTENTIOMETER
Pots with dual 250k or 500k Ohm tracks for panning between 2 pickups.

Both types have a central indent (feels like a notch when rotating the knob).
You can choose between having both pickups at 100% (full volume), or 70%, at the centre position.
pt0005_dimension_90.gif pot_shaft_dimensions_6mm_01_90.gif
PT0003: POTENTIOMETER (18 mm Collar )
250K LOG:
IN STOCK
250K LINEAR:
DISCONTINUED*
500K LOG:
IN STOCK
500K LINEAR:
IN STOCK
Stock Status
250K LOG:
IN STOCK
250K LINEAR:
IN STOCK
500K LOG:
IN STOCK
500K LINEAR:
IN STOCK
Stock Status
1M LOG:
IN STOCK
1M LINEAR:
IN STOCK
500K LOG:
SOLD OUT
500K LINEAR:
IN STOCK
Stock Status
25K LOG:
IN STOCK
25K LINEAR:
IN STOCK
250K LOG:
IN STOCK
250K LINEAR:
IN STOCK
Stock Status
250k 100% Centre:
IN STOCK
500k 70% Centre:
IN STOCK
Stock Status
CRTC01:
IN STOCK
Stock Status
500K LOG:
500K LINEAR:
IN STOCK
£2.00 inc' VAT

£0.50 inc' VAT

£2.75 inc' VAT
£3.25 inc' VAT

From £2.00 inc' VAT
£4.00 inc' VAT

Note: "10mm collars" refers to the length of the threaded part of the shaft.
Suitable for body or scratchplate mounting (each pot is supplied with 2 nuts for height adjustment). These pots are a great choice for Epiphone/Squier upgrades or replacment in high quality instruments.

Note: These pots feature a more robust 9.5mm diameter collar. This may require the holes in your guitar/scratchplate to be "eased" slightly with a some rolled sandpaper (very easily done!)

Click on the picture for detailed dimensions.
Compatible with all knobs on our Knob page. (i.e. Standard 6mm, 18 spline, split-shaft).
TIP 1: LOG pots should always be used for Volume controls. For Tone controls either LOG or LINEAR pots can be used to your preference. If undecided, we recommend using LOG pots.

TIP 2: 500K Ohm pots have a slightly "brighter" sound than 250K Ohm pots as they place less load on the pickup. Therefore, 500K pots are more commonly used with humbuckers. 250K pots are often used with single coils as they can temper some of the shrill brightness. However, both values are interchangeable and can used according to taste.
250K LOG:
IN STOCK
250K LINEAR:
IN STOCK
500K LOG:
IN STOCK
500K LINEAR:
IN STOCK
Stock Status
£4.95 inc' VAT
* SEE PT0002
IN STOCK
CPTN06: ORANGE-DROP CAPACITORS
"Orange Drop" capacitors are accepted as the best capacitor for use in guitar tone control circuits. Often offered at rip-off prices, we offer a selection of 4 values at an amazing price!
.022uF :
.047uF :
IN STOCK
Stock Status
£1.65 inc' VAT
.1uF :
IN STOCK
.033uF :
IN STOCK
.047uf (200v) - generally used with single coil pickups
.033uf (400v) - "middle ground" cap, used with single coils or humbuckers
.022uf (600v) - generally used with humbucker pickups
.1uf (400v) - generally used with active pickups
IN STOCK
WRHUW: HOOK-UP WIRE
22AWG wire with heavy duty insulation.

2 lengths of wire, Yellow & Black, both approx 1 metre long - 2 metres of wire in total.

Perfect for internal guitar wiring of potentiomenters, jacks & switches.
WRHUW:
IN STOCK
Stock Status
£3.95 inc' VAT
WRVCCW: VINTAGE CLOTH COVERED WIRE
22AWG wire with WAXED CLOTH insulation. No stripping, just push back to reveal pre-tinned conductors.

2 lengths of wire, Cream & Black, both approx. 2 foot long - 4 foot of wire in total.

Perfect for internal guitar wiring of potentiomenters, jacks & switches. Looks great and very easy to work with.
WRVCCW:
IN STOCK
Stock Status
£4.95 inc' VAT
WRVBW: VINTAGE CLOTH BRAIDED WIRE
22AWG BRAIDED wire with WAXED CLOTH inner insulation. No stripping, just push back to reveal pre-tinned conductors.

5 foot of wire in one length total. (Enough for a Les Paul including 3 runs of wire to the selector switch.)

Perfect for internal guitar wiring of potentiomenters, jacks & switches. Looks great and very easy to earth and work with.
WRVBW:
IN STOCK
Stock Status
£9.95 inc' VAT
PT0007: SUPERIOR POTENTIOMETER (10 mm Collar )
Superior quality pots featuring a solid brass 10mm collars and shafts. Superb, robust performance and reliability!
Note: "10mm collars" refers to the length of the threaded part of the shaft.
Suitable for body or scratchplate mounting (each pot is supplied with 2 nuts for height adjustment). These pots are a great choice for Epiphone/Squier upgrades or replacment in high quality instruments.
Note: These pots feature a more robust 9.5mm diameter collar. This may require the holes in your guitar/scratchplate to be "eased" slightly with a some rolled sandpaper (very easily done!)

Click on the picture for detailed dimensions.
Compatible with all knobs on our Knob page. (i.e. Standard 6mm, 18 spline, split-shaft).
TIP 1: LOG pots should always be used for Volume controls. For Tone controls either LOG or LINEAR pots can be used to your preference. If undecided, we recommend using LOG pots.

TIP 2: 500K Ohm pots have a slightly "brighter" sound than 250K Ohm pots as they place less load on the pickup. Therefore, 500K pots are more commonly used with humbuckers. 250K pots are often used with single coils as they can temper some of the shrill brightness. However, both values are interchangeable and can used according to taste.
£3.95 inc' VAT
guitar_parts_uk052023.gif guitar_parts_uk052032.gif
PT0008: SUPERIOR POTENTIOMETER (18 mm Collar )
Superior quality pots featuring a solid brass 18mm collars. Superb, robust performance and reliability!
Note: "18mm collars" refers to the length of the threaded part of the shaft.
Suitable for body or scratchplate mounting (each pot is supplied with 2 nuts for height adjustment).
These pots are a great choice for Epiphone/Squier upgrades or replacement in high quality instruments.
Note: These pots feature a more robust 9.5mm diameter collar. This may require the holes in your guitar/scratchplate to be "eased" slightly with a some rolled sandpaper (very easily done!)

Click on the picture for detailed dimensions.
Compatible with all knobs on our Knob page. (i.e. Standard 6mm, 18 spline, split-shaft).
TIP 1: LOG pots should always be used for Volume controls. For Tone controls either LOG or LINEAR pots can be used to your preference. If undecided, we recommend using LOG pots.

TIP 2: 500K Ohm pots have a slightly "brighter" sound than 250K Ohm pots as they place less load on the pickup. Therefore, 500K pots are more commonly used with humbuckers. 250K pots are often used with single coils as they can temper some of the shrill brightness. However, both values are interchangeable and can used according to taste.
500K LOG:
IN STOCK
500K LINEAR:
IN STOCK
Stock Status
£4.95 inc' VAT
guitar_parts_uk052023.gif guitar_parts_uk052022.gif guitar_parts_uk052018.gif

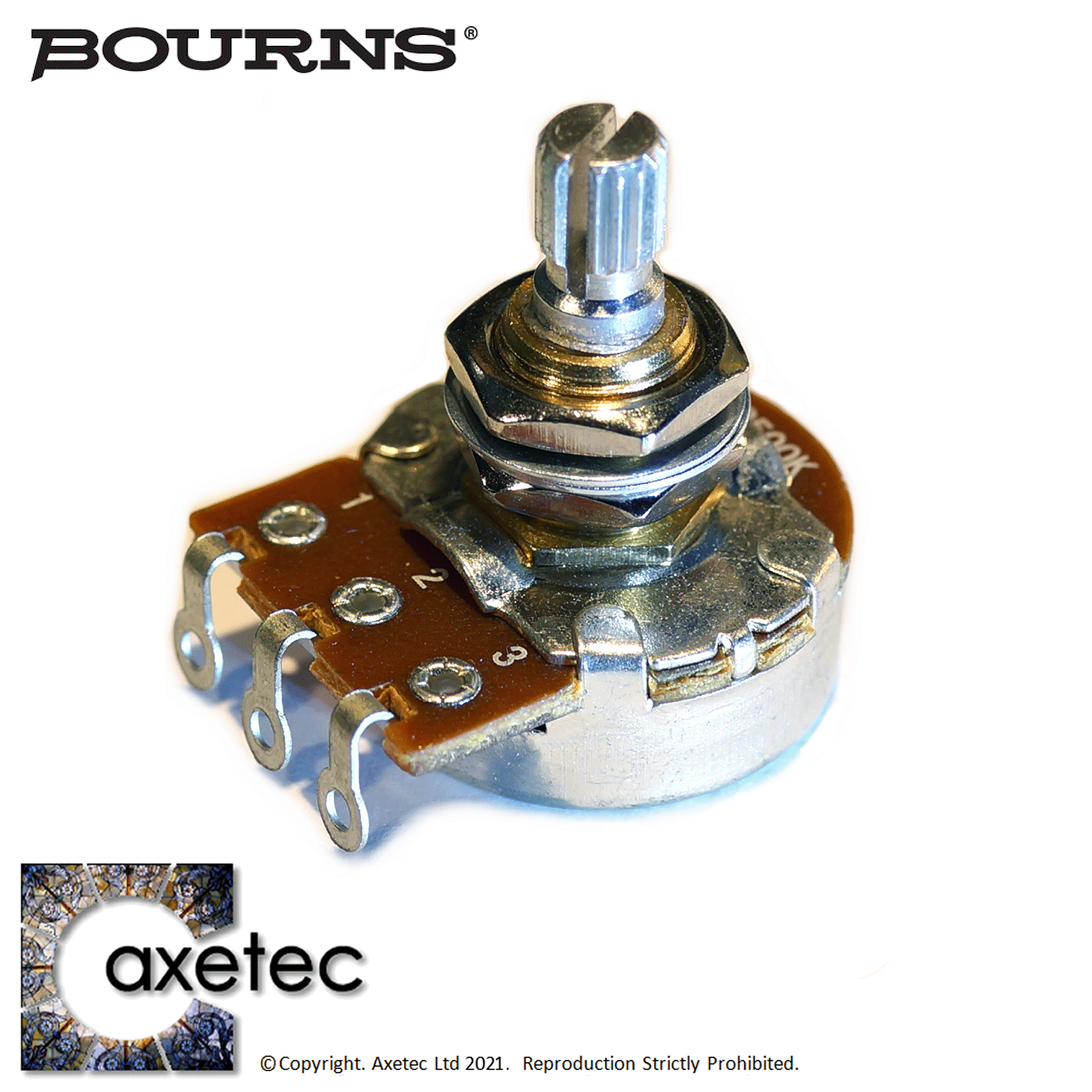

PT0011: BOURNS POTENTIOMETER (10 mm Collar)
  • Audio Taper (LOG) or Linear (LIN) Taper
  • Thread Diameter: 9.5mm, 3/8"inch (CTS Compatible)
  • Thread Length: 9.5mm, 3/8"inch (MEDIUM COLLAR)
  • Compatible with all knobs on our Knob page. (i.e. Standard 6mm, 18 spline, split-shaft).
  • Each pot is supplied with 2 nuts for height adjustment
BOURNS ULTIMATE QUALITY SWITCHED POTS featuring a solid brass 9.5mm collar length. Unbeatable performance and reliability!
Note: "18mm collars" refers to the length of the threaded part of the shaft.
Suitable for body or scratchplate mounting (each pot is supplied with 2 nuts for height adjustment). These pots are a great choice for Epiphone/Squier upgrades or replacment in high quality instruments.

Note: These pots feature a more robust 9.5mm diameter collar. This may require the holes in your guitar/scratchplate to be "eased" slightly with a some rolled sandpaper (very easily done!)

Click on the picture for detailed dimensions.
Compatible with all knobs on our Knob page. (i.e. Standard 6mm, 18 spline, split-shaft).
TIP 1: LOG pots should always be used for Volume controls. For Tone controls either LOG or LINEAR pots can be used to your preference. If undecided, we recommend using LOG pots.

TIP 2: 500K Ohm pots have a slightly "brighter" sound than 250K Ohm pots as they place less load on the pickup. Therefore, 500K pots are more commonly used with humbuckers. 250K pots are often used with single coils as they can temper some of the shrill brightness. However, both values are interchangeable and can used according to taste.
£5.95 inc' VAT

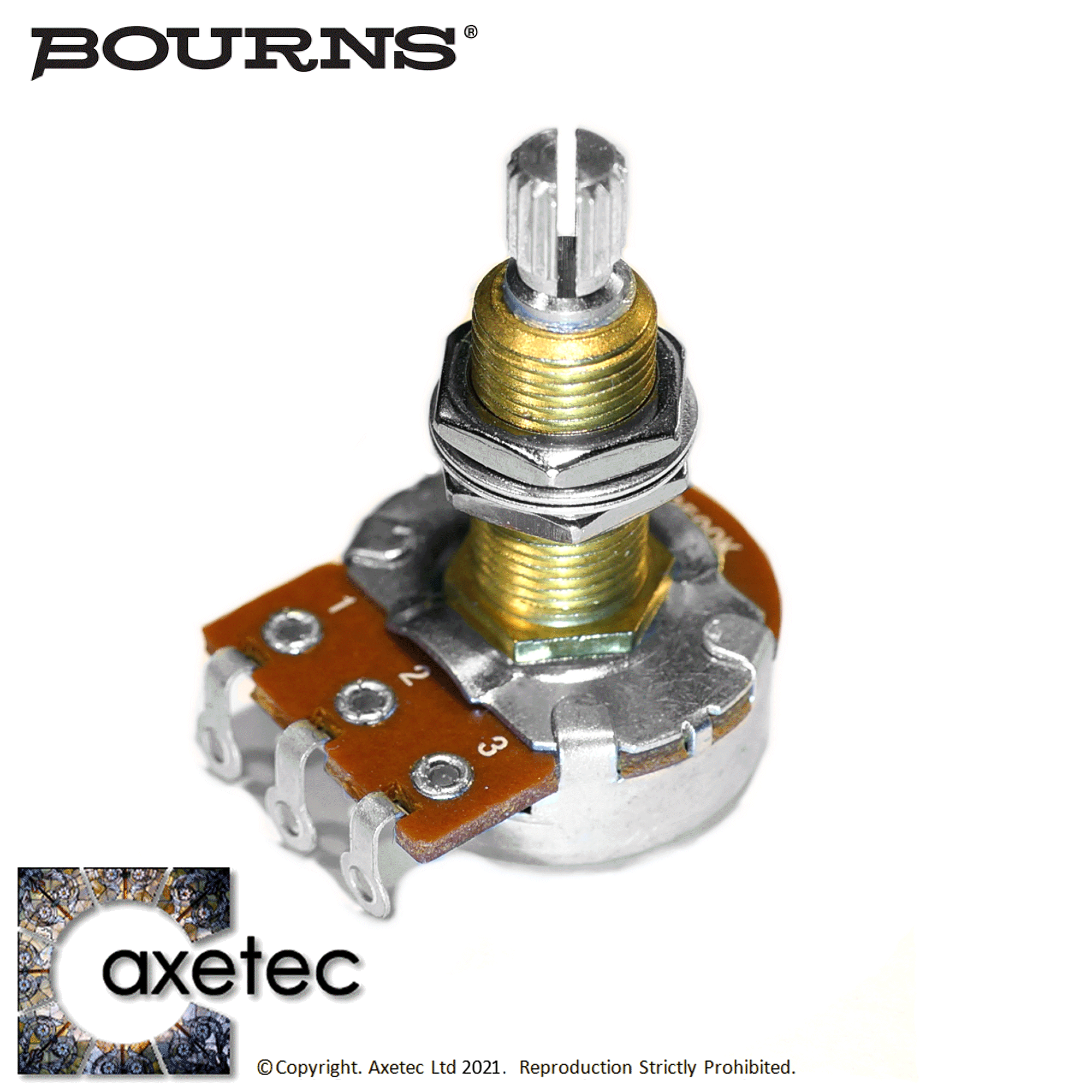

PT0012: BOURNS POTENTIOMETER (18 mm Collar)
  • Audio Taper (LOG) or Linear (LIN) Taper
  • Thread Diameter: 9.5mm, 3/8"inch (CTS Compatible)
  • Thread Length: 18mm, 3/4"inch (LONG COLLAR, Suitable for US Les Pauls)
  • Compatible with all knobs on our Knob page. (i.e. Standard 6mm, 18 spline, split-shaft).
  • Each pot is supplied with 2 nuts for height adjustment
BOURNS ULTIMATE QUALITY SWITCHED POTS featuring a solid brass 18mm collar length. Unbeatable performance and reliability!
guitar_parts_uk052019.gif guitar_parts_uk052018.gif guitar_parts_uk052017.gif
500K LOG:
IN STOCK
500K LINEAR:
IN STOCK
Stock Status
WIRING
250K LOG:
IN STOCK
250K LINEAR:
500K LOG:
500K LINEAR:
IN STOCK
Stock Status
* SEE PT0011
DISCONTINUED*
IN STOCK
