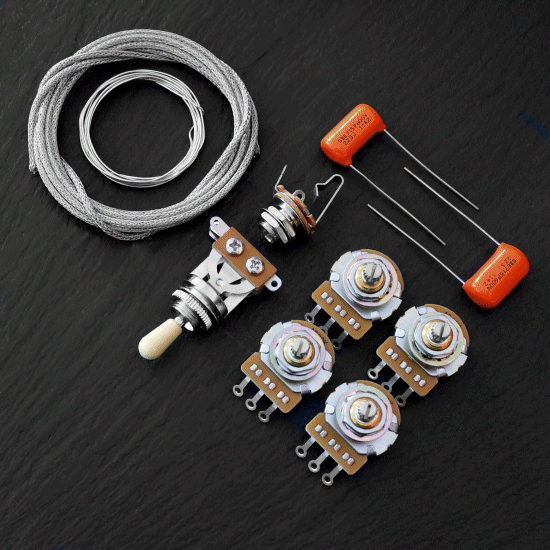

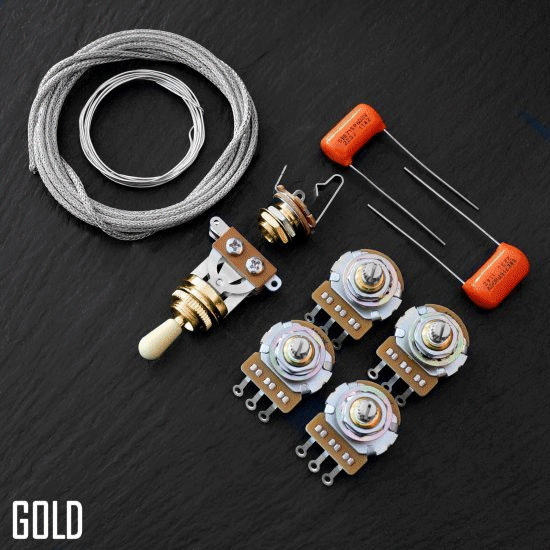

This kit contains exceptional quality components from our SUPERIOR ranges and is suitable for use in pro instruments. It also provides a very significant upgrade for Epiphone / Chinese copy guitars. Supplied complete with clear instructions and diagram and available with chrome or gold parts. Highly recommended!

Kit comprises of:
4 x 500K LOG SUPERIOR pots with 10mm long collars. (9.5mm diameter - see note)
1 x Pickup Selector Switch with Ivory Tip
1 x Superior mono socket
2 x .022uF or .047uF Orange Drop Tone Capacitor (Choose below)
5 foot of Vintage Cloth Braided Wire
1 metre Tinned Copper Wire
1 x Wiring diagram + Tips / Instructions

Supplied with either Chrome or Gold Switch & Jack Socket
Ordering made easy (and cheaper)! All you need to upgrade the electronics in your guitar with one order.
All Axetec wiring kits come with the very clear diagrams and extremely useful instructions + tips on wiring and soldering
LPKIT01: LP ORANGE DROP WIRING KIT
Kit comprises of:
4 x 500K LOG pots - 18mm or 10mm Collars (Choose below)
1 x Pickup Selector Switch
1 x mono socket
2 x .022uF or .047uF Orange Drop capacitor (Choose below)
2 metres Hook-up wire
2 metres Single Core Screened Cable
1 metre Tinned Copper Wire
1 x Wiring diagram for LP-Style guitars

Supplied with either Chrome, Black or Gold Switch & Jack Socket
Tip 1: You can use 500K or 250K pots on any guitar with passive pickups (i.e. not battery powered). 500K systems are more common. 250K pots give a slightly "darker" sound.

Tip 2: You can use .047uF or .022uF capacitors. .047uF values are more often used with single coils as they have a greater range ang can help to tame some of the brightness associated with these pickups. a .022uF are more often used with humbuckers, but the 2 types are interchangeable to taste.

Tip 3: Many Epiphone and other "copy" guitars have been routed to accept shorter collar pots (10mm) - most American guitars require longer collar (18mm) due to the thickness of the top.
guitar_parts_uk028034.gif guitar_parts_uk028033.gif
Click to
Expand
Click to
Expand
LPKIT02: LP "MR PAGE" ORANGE DROP WIRING KIT
From 34.95
Kit comprises of:
4 x 500K LOG Switched pots (10mm or 18mm Collars)
1 x Pickup Selector Switch
1 x mono socket
2 x .022uF or .047uF Orange Drop capacitor (Choose below)
2 metres Hook-up wire
2 metres Single Core Screened Cable
1 metre Tinned Copper Wire
1 x Wiring diagram.

Supplied with either Chrome, Black or Gold Switch & Jack Socket

This kit will give you all of the switching options of Jimmy's Les Paul. e.g:-

Bridge Volume: Pull for single coil
Bridge Tone: Pull for Reverse Phase
Neck Volume: Pull for Single Coil
Neck Tone: Pull for Series with Bridge

Note:
1. 10MM COLLAR Switched pots are suitable for most guitars including almost all Epiphones. If your guitar is a US Manufactured Les Paul guitar with an arched top, you will need 18MM COLLAR pots.

2. You will need 4-wire humbuckers.

3. Pickup manufacturers use differing colour codes for their pickups. We supply a diagram showing the correct colours for IronGear pickups and may be able to assist with identifying the colour codes for your pickups. In most cases, we are able to email a diagram showing the correct colours for your installed pickups.

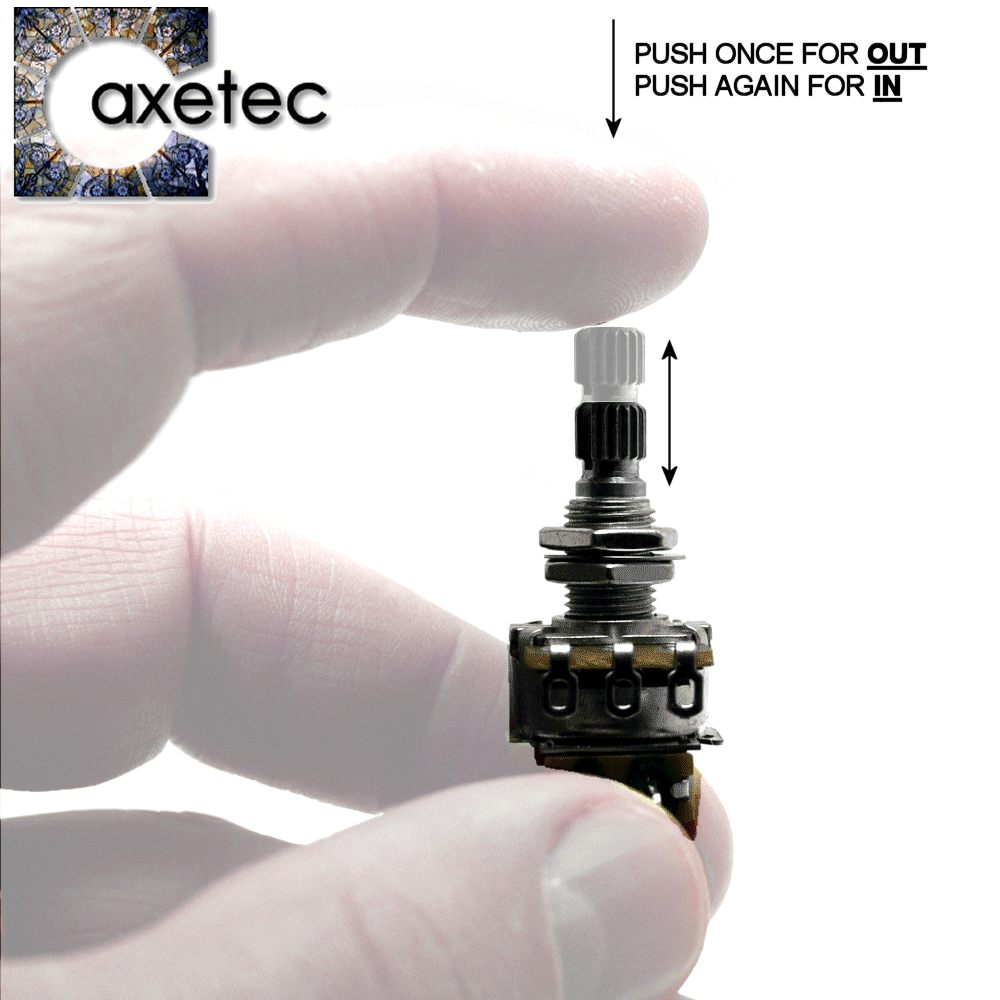

4. NOW OFFERED WITH THE OPTION OF excellent quality switched potentiometer with "PUSH-PUSH" DPDT. HARD TO FIND! PUSH-PUSH. These pots are superb in operation and much slicker to operate (especially when playing live!). One push brings the switch to the "out" position, a second push toggles to the "In" position. No more sweaty fingers slipping off tapered knobs!
guitar_parts_uk028031.gif kit_lpkit01_04_100.gif
Click to
Expand
Gold Parts:
IN STOCK
White Tips:
IN STOCK
Gold Parts:
IN STOCK
White Tips:
IN STOCK
GUITAR PARTS UK - PICKUPS, PARTS & ACCESSORIES
Total:
Go
Fender, Stratocaster, Telecaster are registered trademarks of Fender Music Corporation. Gibson, and Les Paul are registered trademarks of Gibson Music Corporation. Axetec Ltd is not affiliated with these manufacturers in any way.
Guitar parts uk Pickups bridges knobs pots tuners machineheads fender gibson les paul stratocaster telecaster lace seymour duncan
epiphone new and used online epiphone parts fender parts gibson parts  gotoh schaller  bridges luthier parts stratocaster telecaster
les paul
HIGH QUALITY GUITAR SPARES, PARTS & PICKUPS AT THE BEST PRICES
Items:
guitar_parts_uk001011.gif guitar_parts_uk028022.gif ptsw03-action03-98.gif
PUSH-PULL (10mm):
IN STOCK
sidemenuheader-bridges-01.gif sidemenuheader-tuners-01.gif sidemenuheader-pickups-01.gif sidemenubutton-blank-blue-off-pots01.gif sidemenubutton-blank-blue-off-switches01.gif sidemenubutton-blank-blue-off-caps01.gif sidemenubutton-blank-blue-off-jacks02.gif sidemenubutton12-tc03.gif sidemenubutton12-cm03.gif sidemenubutton12-od03.gif sidemenubutton12-jsp03.gif sidemenubutton12-ps03.gif sidemenubutton12-swp03.gif sidemenubutton12-sp03.gif sidemenubutton12-mt03.gif sidemenubutton12-34pl03.gif sidemenubutton12-5pl03.gif sidemenubutton12-lps3wt03.gif sidemenubutton12-ss03.gif sidemenubutton12-ac03.gif sidemenubutton12-scr03.gif sidemenubutton12-huw03.gif sidemenubutton-blank-blue-on-wiring02.gif sidemenuheader-hware-01.gif sidemenuheader-news-01.gif sidemenuheader-cont-01.gif sidemenuheader-about-01.gif sidemenuheader-newprod-01.gif sidemenuheader-acc-01.gif sidemenuheader-map-01.gif sidemenuheader-order-01.gif sidemenuheader-links-01.gif sidemenuheader-gall-01.gif sidemenuheader-feedback-01.gif guitar_parts_uk025022.gif ptsw05_dimensions_01-98.gif
PUSH-PULL (18mm):
IN STOCK
sidemenubutton12-wk02.gif kit_lpkit02_mr_page_06-100.gif
From 24.95
LP-PROKIT16: LP PRO WIRING KIT
From 39.95 inc' VAT
Gold Parts:
IN STOCK

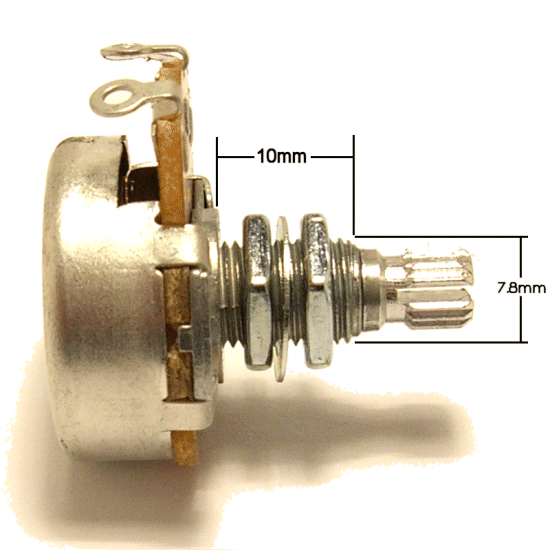

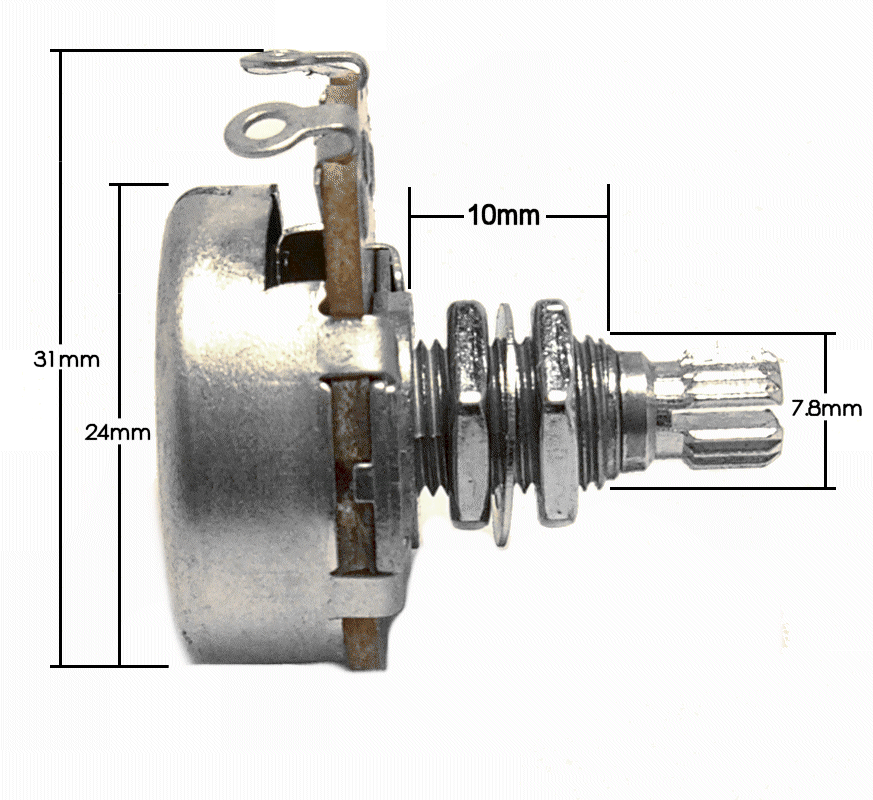

Note: These pots feature a more robust 9.5mm diameter collar. This may require the holes in your guitar/scratchplate to be "eased" slightly with a some rolled sandpaper (very easily done!). They are compatible with all knobs on our Knob page. (i.e. Standard 6mm, 18 spline, split-shaft).
guitar_parts_uk028012.jpg guitar_parts_uk028010.jpg tlsn01-side-v01-200.gif

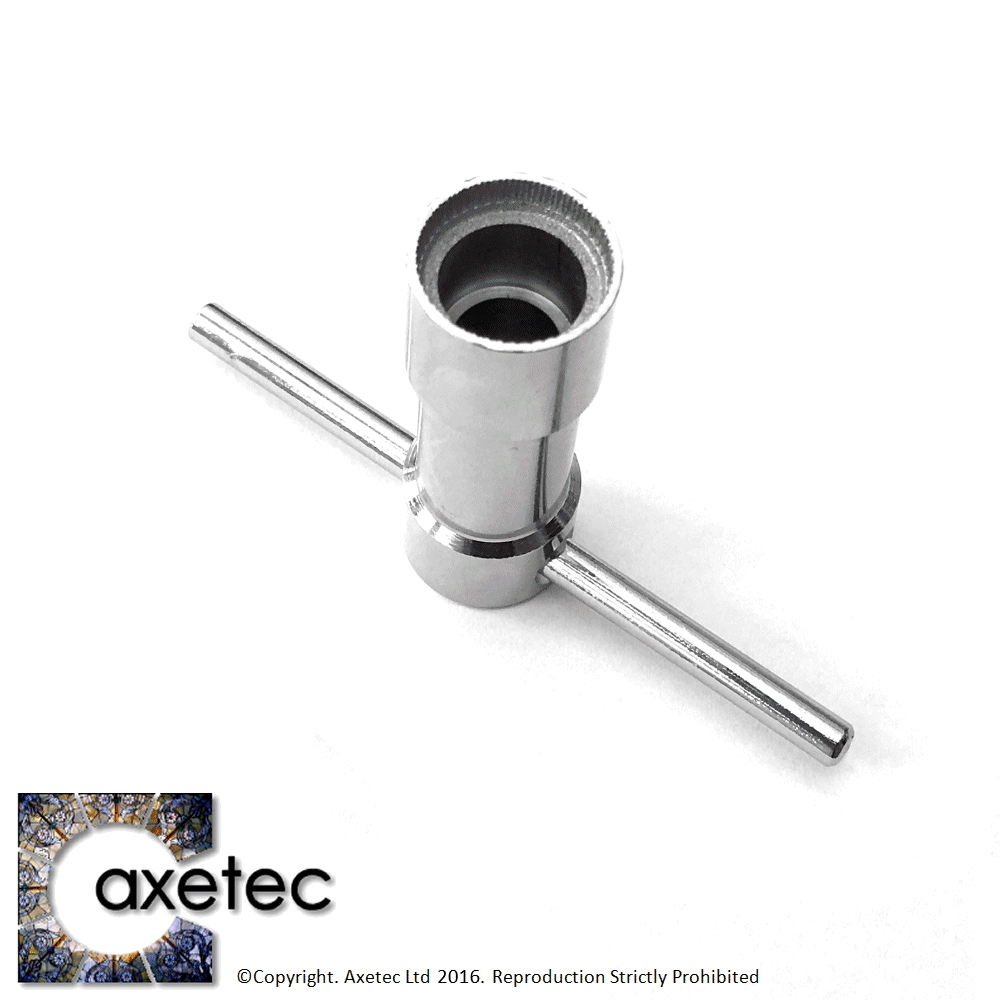

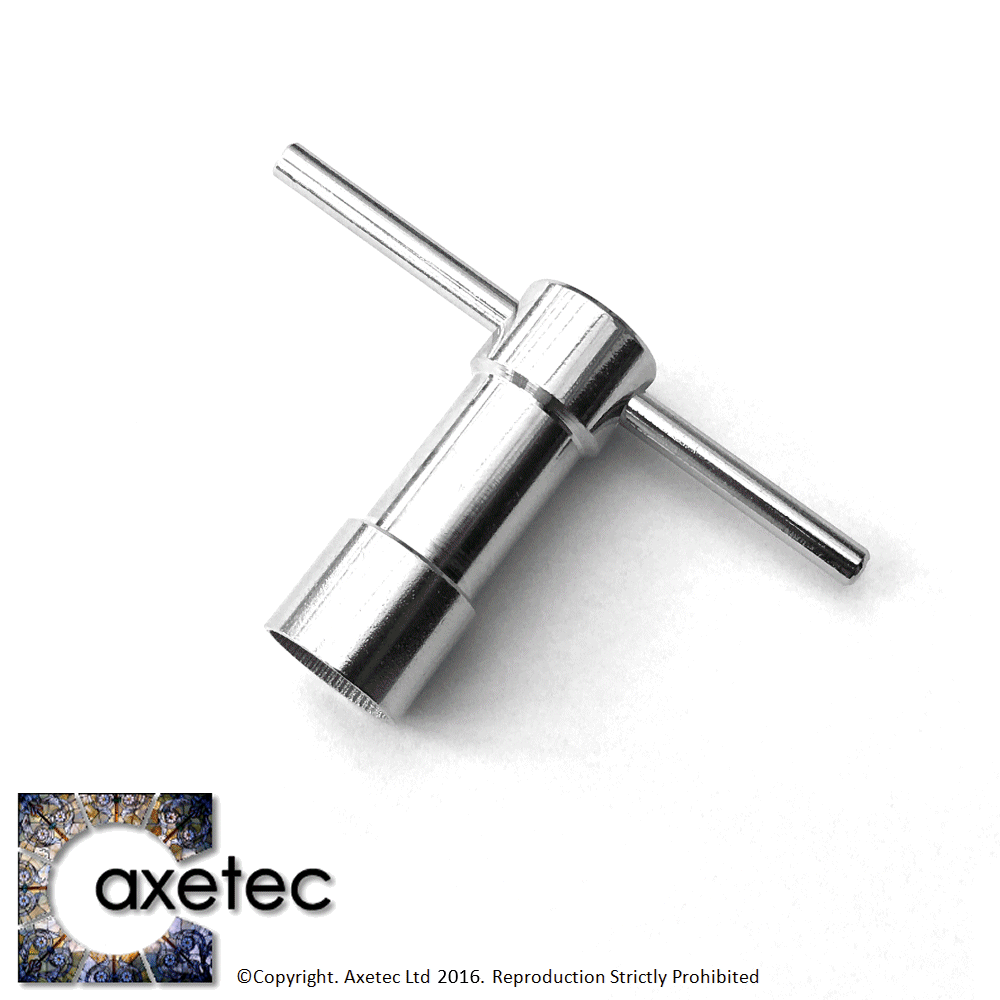

Brilliant toll for installing LP style toggle switches!

Allows the switch to be securely tightened without the risk of damaging your guitar top.
TLSN01: SWITCH NUT SOCKET WRENCH
TLSN01:
IN STOCK
Stock Status
 11.95 inc' VAT
Compatible with our SW003/SW053 switches and most other LP-Style switches with a knurled top nut.
