HIGH QUALITY GUITAR SPARES, PARTS & PICKUPS AT THE BEST PRICES
GUITAR PARTS UK - PICKUPS, PARTS & ACCESSORIES

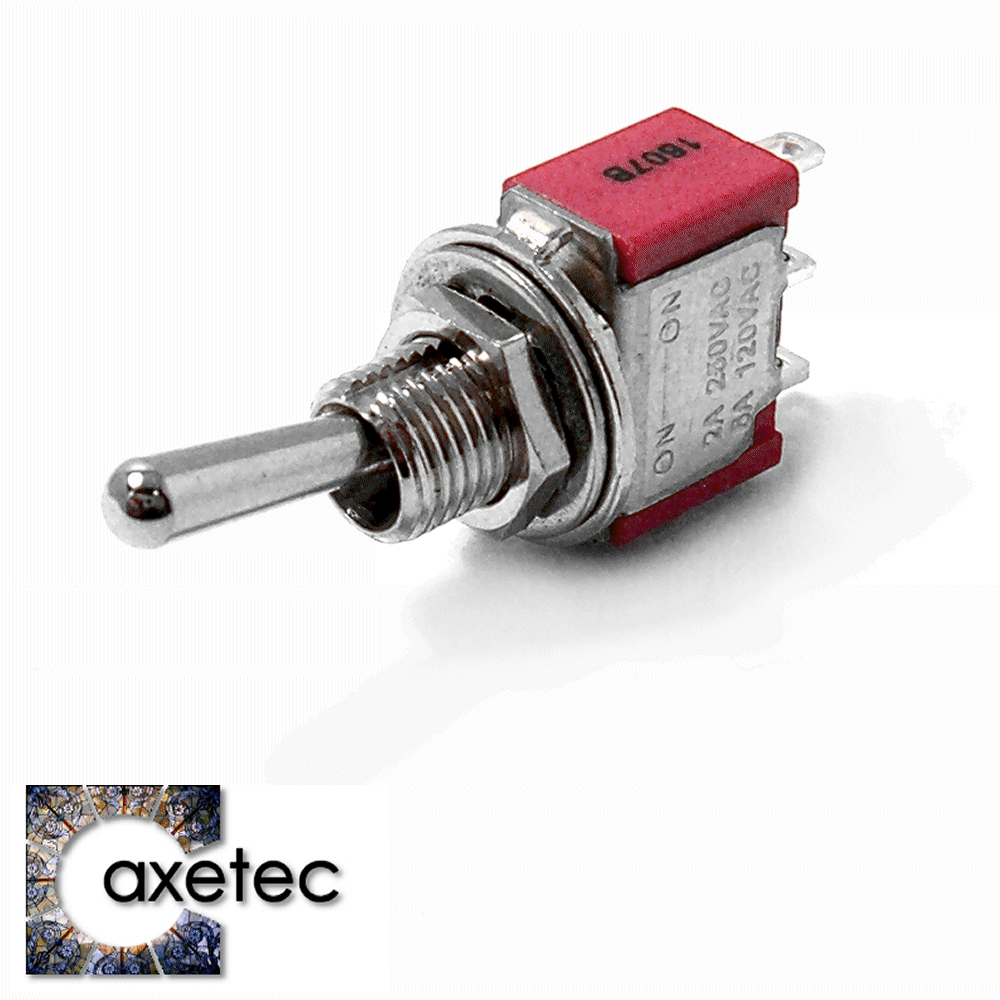

SW004: MINI TOGGLE SWITCH SPDT
SPDTL: Single Pole, Double Throw

What does this mean? - One set of contacts with two positions.

Note: This switch does not have a "Centre-off" position.

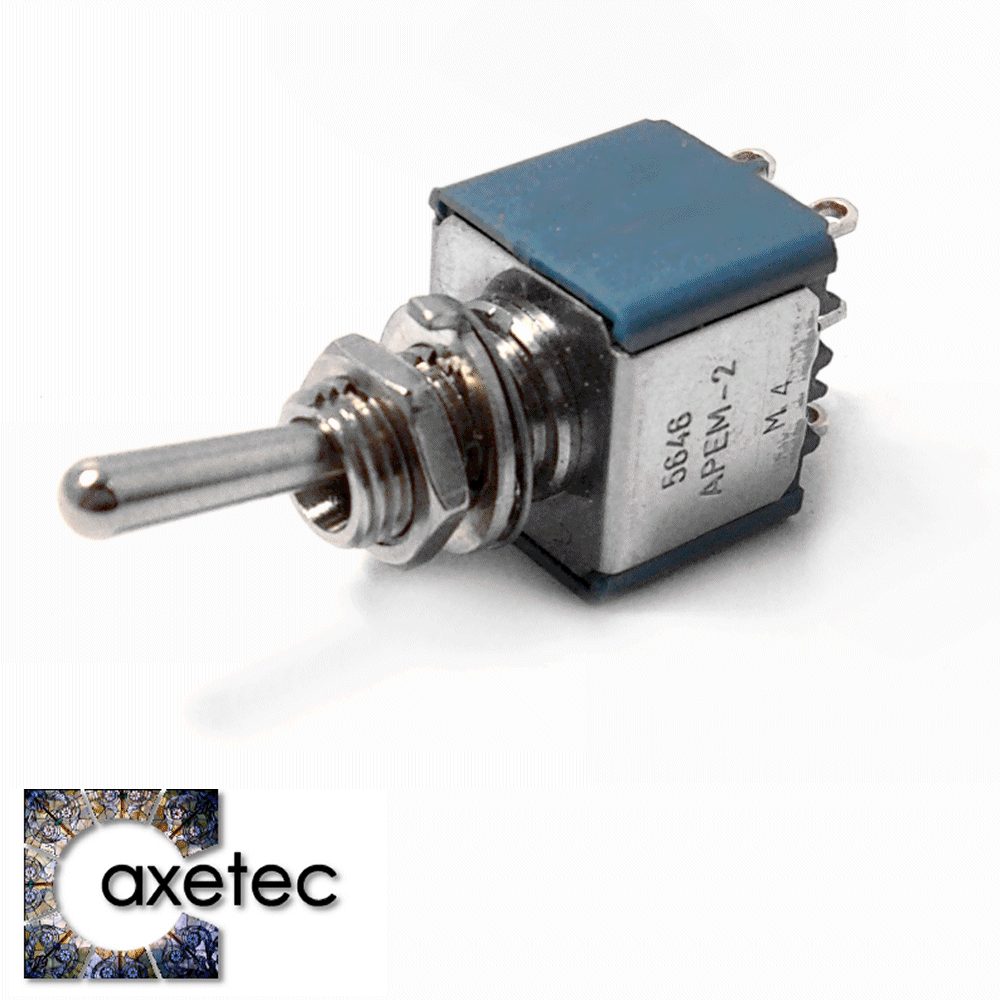

SW005: MINI TOGGLE SWITCH DPDT
DPDT: Double Pole, Double Throw
What does this mean? - Two sets of contacts with two or three positions.
sw004-spdt-200.gif sw005-dpdt-200.gif
2 Position:
IN STOCK
Stock Status
2 Position:
IN STOCK
3 Position Centre OFF:
IN STOCK
3 Position Centre ON:
IN STOCK
Stock Status
£4.75 inc' VAT
From £5.00 inc' VAT

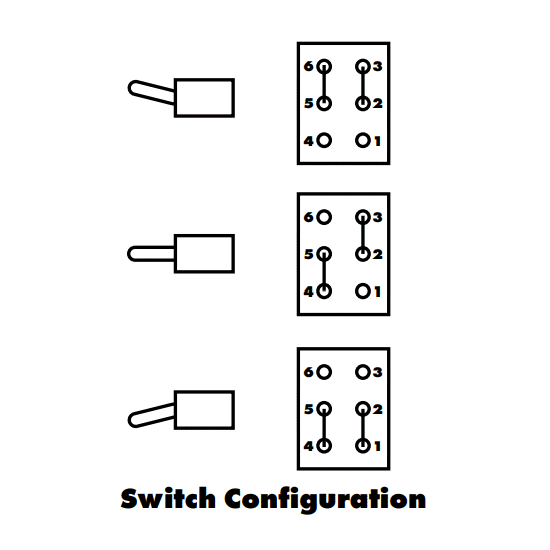

Click diagram above for
Switch Action for 3 Position Centre ON Switch.
(Sometimes the cause of confusion)
WIRING
