Hammer Head

Hammer Head product identifier

A high-output ceramic humbucker with massive hex-head polepieces — the same DNA as the Steam Hammer with extra magnetic punch focused under the strings. Built for insane bends and down-tuned riffing.

From £37.95inc. VAT · Free UK shipping over £50

For destinations outside the UK, VAT @ 20% is deducted at checkout.

Live stock:

If the pickup you need is out of stock, click on the EMAIL link, enter your details and we'll send you a message as soon as it is available again.

Black Bridge:
Black Neck:
White Bridge:
White Neck:

Pickup Overview

The same specifications as the fabulous Steam Hammer — but with massive hex-head polepieces that focus maximum magnetic flux directly under the strings.

That extra punch transforms the bass performance and makes the Hammer Head perfect for insane bends and down-tuned riffing. We've designed it to drive the front end of your amp into really useable overdrive tones while retaining enough clarity for crisp cleans from both bridge and neck positions.

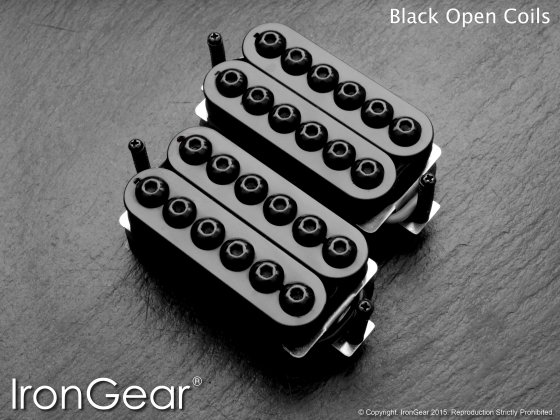

Available with Black or White open coils.

Sound Clips

Played by Aidan Roker

Bridge — Clean

Bridge — Dirty

Neck — Clean

Neck — Dirty

Specifications & Supporting Information

Technical Specifications

DC Resistance (Bridge)
15 kΩ
DC Resistance (Neck)
14 kΩ
Magnet Type
Ceramic
Coil Wire
44 AWG enamel
Conductors
4-conductor (coil-split capable)

Build

Format
Humbucker — hex-head polepieces, open coils
Pole Spacing
Bridge 52 mm · Neck 50 mm
Baseplate
Custom etched nickel silver
Supplied With
Mounting screws & springs

Recommended Components & Applications

Recommended Components
500 kΩ pots, .022 µF tone capacitor
Applications
Hard Rock · Metal · Down-tuned riffing · big bends — same DNA as the Steam Hammer

What Players Are Saying 11 Reviews

“We play a kind of filthy, down-tuned industrial death metal and a Hammer Head at the bridge is PERFECT. Insanely high output, killer low end that makes palm mutes hit like a ton of bricks, and the pinched harmonics practically pinch themselves. Through a Mesa Boogie this thing could take down walls.” — Dave Newell, Stockport (NekroDrako)
“Dropped them into my BC Rich Warlock to replace the stock pickups. 30 minutes later my Warlock sounds like a higher-end Warlock for a fraction of the price. The best thing is they can grunt like two pigs mating quite happily all day long, but they also sound amazing when used clean — no loss of tone like my mate's Seymour Duncan Invaders.” — Jody Goodrick, Weymouth
“These Hammer Head pickups have totally transformed the sound of two completely ordinary guitars. I've got my “sound” — something I've been striving to find for the last 30 years. When overdriven, I can only describe the bell-like harmonics and note-for-note clarity as “spine tingling”. From this day forward, I'm an IronGear man.” — Big Dave, Denbigh
“I just wanted to drop you a line to let you know how amazed and happy I am with the bridge and neck Hammer Head pickups I recently purchased. Fitted both humbuckers to my Jackson Dinky — the difference in tone and power was a joy to behold! Never again will I go back to using Seymour Duncan pups.” — Paul, Chesterfield
“Retro’d my Strat with the Hammer Head at the bridge position — just what I needed. An excellent value-for-money power pickup to complete my monster project. Versatile full-on sound I was searching for through my FX.” — John, Worcestershire
“Fitted two Hammer Heads, neck and bridge, to one of our ROG85A guitars. Coil-tapped both. On full humbucking mode these are fantastic — clear sound on the clean channel, but on distortion these ROCK. Really overdrive a tube amp beyond normal.” — Ross, Red Planet Guitars
“Upgraded my BC Rich Bitch by installing a pair of VERY mean Hammer Heads. Awesome pickups at a great price, with fast delivery and superb customer service. Keep it up!” — Tom, Telford
“I play de-tuned grindcore and death metal. Fitted the Hammer Head to my Jackson — the results were far beyond what I was expecting. A very big sound with lots of power, really transformed my guitar. You will be at the top of my list when recommending pickups to anybody.” — Graham, Okehampton
“Fitted the Hammer Head bridge pickup into my Fat Strat — I'm blown away with it. The old pickup was dull and lifeless. I think it out-performs one of the Big Name pickups with a similar appearance and at less than half the price. I will definitely be using IronGear pickups in my next project.” — Paul
“I received the Hammer Head today, and am completely blown away. This is amazing in all departments — build quality, presentation, look, and more importantly the sound. I am stunned. You have brought new life to a 12-year-old guitar.” — Lee Gordon, Luton
“Linked up the humbucker with a DPDT switch so I could have it either series or parallel. The results are impressive — it really delivers a great output, mind-blowing clean tone. Overall, excellent value for money and definitely will be getting more for the next one.” — Gerson Velasquez, Penzance
