Metal Machine

Metal Machine product identifier

IronGear's most powerful passive pickup — a 21 kΩ bridge humbucker designed specifically for metal and drop-tunings.

From £37.95inc. VAT · Free UK shipping over £50

For destinations outside the UK, VAT @ 20% is deducted at checkout.

Live stock:

If the pickup you need is out of stock, click on the EMAIL link, enter your details and we'll send you a message as soon as it is available again.

Black/Black Bridge:
Black/Black Neck:
Black/Chrome Bridge:
Black/Chrome Neck:
White/Black Bridge:
White/Black Neck:
White/Chrome Bridge:
White/Chrome Neck:

Pickup Overview

The Metal Machine is the first IronGear pickup specifically designed for metal — gut-churning bottom end, a roaring midrange, and smooth highs.

It screams with precision, clarity and power, and cuts through high-gain settings with amazing definition. Featuring a Y30 ceramic magnet and a bridge wound to 21 kΩ, the Metal Machine packs a serious punch — works brilliantly for both standard and drop-tunings.

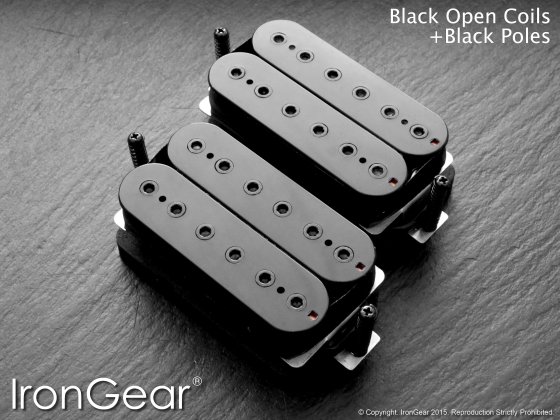

Available with Black or White coils, paired with Black or Chrome bobbins.

Sound Clips

Sound clips for this pickup are coming soon.

Specifications & Supporting Information

Technical Specifications

DC Resistance (Bridge)
21 kΩ
DC Resistance (Neck)
17 kΩ
Magnet Type
Y30 Ceramic
Coil Wire
44 AWG enamel
Conductors
4-conductor (coil-split capable)

Build

Format
Humbucker
Pole Spacing
Bridge 52 mm · Neck 50 mm
Baseplate
Custom etched nickel silver
Supplied With
Mounting screws & springs

Recommended Components & Applications

Recommended Components
500 kΩ pots, .022 µF tone capacitor
Applications
Metal · Drop-tuned guitars · the most powerful passive pickup IronGear make

What Players Are Saying 10 Reviews

“Tried a Hot Slag a couple of years ago in another guitar, so figured I'd try another of your models in my current Jackson Rhoads. Stock pickups were the EMG 81/85 set, which just weren't giving me what I wanted. Dropped the Metal Machine set in and was instantly in high-gain nirvana. All the punch and definition I was looking for in the low end, with brightness, clarity and aggression in the top end — minus the harshness and fizz that's common in other high-output pickups. The only downside? The stock Duncans in my other guitar suddenly seem flaccid and lifeless by comparison. You guys could be charging BKP prices and it would still be worth the money.— Matt, Brisbane, Australia
“I decided to upgrade my Maverick Chaos 1 guitar — bought the Metal Machine bridge and neck pickups, white with black pole pieces. On a metallic blue body it makes these monster pickups stand out. Absolutely love these pickups. Have been a Seymour Duncan fan for years, now I'm converted to IronGear. Very powerful and ideal for metal. In all positions you get a great selection of tones, clean and distortion from all 5 positions on the 5-way switch. Highly recommended. Don't be scared to try them even if they're high output pickups — these are quality and you will not be disappointed.— Paul Hill, Moodiesburn, Glasgow
Wow. The Metal Machines sound amazing and made me realise how dull-sounding the stock pickups on the guitar were — it's like night and day. I actually had to take a step back from my amplifier when using the lead, brown and crunch channels — it was like being slapped in the face, they sounded huge and aggressive. Despite this they also have good clarity and dynamics. They even sound amazing clean. Thanks.” — Mike
Well, if God played a low-cost, high-performance pickup, it would be the Metal Machine! I sat on the fence about buying such an affordable pickup for the longest while — if other high-end pickups cost £££, why doesn't this one? Ah heck it, I bought it anyway. I am so glad I did. I spent about a third of the cost and I am getting all the tone — a massive, full sound whilst retaining clarity even when under bucket loads of distortion. If you yourself are sat on the fence when it comes to buying this pickup, absolutely do it. You will not be disappointed.” — Tynon Sheen, Stoke-on-Trent
Absolutely astounded, words genuinely fail me at the quality and price of the pickups. I bought them after reading the testimonials on the site and, as usual with online things, took them with a pinch of salt — I'm more than happy to say I was wrong to. Installed a Hammer Head / Metal Machine combo in my project guitar and a set of Hot Slags in a friend's long-neglected, underperforming SG. I immediately grabbed a guitar with EMG Hot 70 actives loaded and they were completely on par. Astounded. Literally the only complaints I have are that what was meant to be a project guitar to slowly build up had every piece of electronics replaced in one day for the price of one rival pickup — and that the output is so high that on the amp settings from the stock pickups they caused a glass to fall off a shelf from sheer power. Whether it's a sub-£200 guitar or a grand-up custom build, these will be the best investment you'll ever make. Genuinely, thank you guys.” — Ross, Belfast
“I've just installed my new set of IronGear Metal Machines in my Fernandes Vulcan — a high-spec Japanese-made instrument that originally came equipped with active EMGs. Since I'm not big on active pickups I've tried plenty of passives in it, from budget-friendly Alan Entwistles to boutique Bare Knuckles, and now the Metal Machines. I'm very impressed with the tone these pickups deliver — thick, crisp and precise, everything that's needed for modern prog / metal sounds. They sound at least on par with the Duncans, DiMarzios and even Bare Knuckles that I've previously had in this guitar, and compared to my other high-end guitars equipped with BK Warpigs and BK Ragnaroks, my Metal Machine-equipped guitar has its own character and sounds at least as good as them. If only IronGear pickups had been reviewed and demonstrated by plenty of YouTube influencers like the big brands are — they'd surely get more appreciation since they definitely deserve a spot with the top brands on the market. I'd definitely recommend trying these to anyone looking to upgrade or modify their guitar.” — Tim, Toronto, Ontario, Canada
The Metal Machine pickups are a revelation. I've judged them against the alternatives that were removed — 2 Seymour Duncans. The Seymour Duncans, in my view, are not even close. The Metal Machines do all that appears in the description and a great deal more — the guitar is brutal and precise when I want it to be and sings when required. The standout feature of these immensely powerful pickups is the detail. My repair man took the view that they cover much of the sonic territory that an active pickup would cover.” — Andrew Marsh, Liverpool
“Wanted to beef up my Jackson Kelly. Was originally going to install some Seymour Duncan Black Winters, but they were more than I could afford. I'm glad I couldn't afford the Seymour Duncans. The Metal Machines are fantastic pickups. They sound utterly annihilating with a modern metal tone, and with a more old-school Maiden / Priest sound they don't sound overpowering or too compressed. DEFINITELY consider these — they're well worth the (tiny, for such high-output pickups) cost.— Adam Rose-Nash, Newcastle-upon-Tyne
“I am a guitar player, composer and guitar luthier. I acquired Metal Machine pickups for my last new build. Man, your new pickups are brutal — so excellent! High gain, so expressive, great clearness even in the wildest riff, and brutal definition. IronGear, you have gained me like a guitar player and luthier!” — Alejandro “Jandertaker”, Lleida, Barcelona
“Just bought a Metal Machine bridge pickup. First thing I noticed is the quality on these is fantastic. The build looks like Gibsons — even the maple spacers. Sound-wise WOW. These are not fantastic pickups for the price — these are fantastic pickups at ANY price. So much clarity, definition and balls. Keep up the good work guys!” — Nick Evans, South Wales
